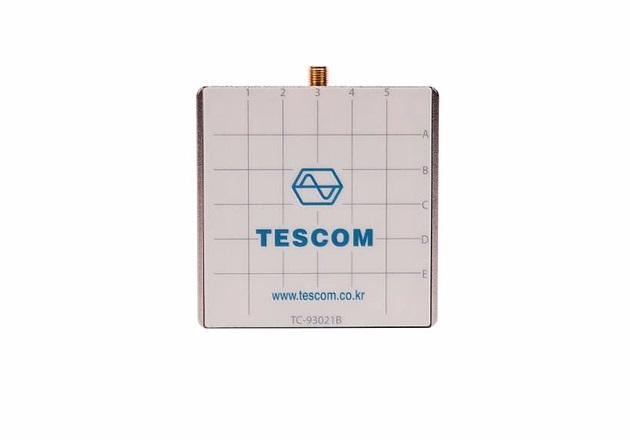

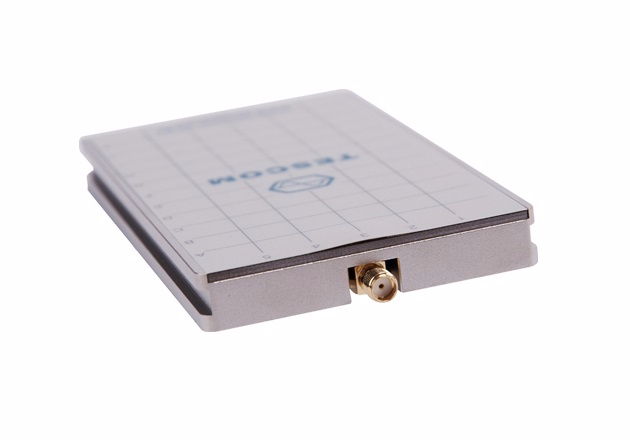

TC-93021B, Flat Type Antenna Coupler, performs RF Coupling for Near Field Electromagnetic Field of DUT as installed in the SAISHENG’s RF Shield Box. It is stable and has steady RF Coupling characteristics within range of 80 ~ 2650 MHz. Its size is 70(W) x 70(D) that can be applied to test various types of devices.
+86 18038170771Frequency Range: 80 ~ 2650 MHz
RF Connector: SMA(f)
Dimension: 70 (W) x 70 (D) x 12 (H) mm
Weight: 80 g
Terminal: 50 Ohm
VSWR: better than 1 : 1.7
